When it comes to protecting electrical systems from the destructive power of lightning, lightning arresters are an essential component. In particular, 11kV lightning arresters play a critical role in medium-voltage systems, safeguarding infrastructure from potentially devastating surges. But what exactly is an 11kV lightning arrester, and why is it so important? This guide will walk you through everything you need to know about these devices, from their basic function to their installation, maintenance, and beyond.

A lightning arrester is a device that protects electrical systems by diverting surge voltage to the ground during a lightning strike. The arrester acts as a buffer between the lightning and your valuable equipment, ensuring that high voltage doesn’t cause damage. In the context of 11kV systems, these arresters are designed to handle medium voltage levels, making them a crucial part of the power distribution network.

The basic principle behind a lightning arrester is quite simple. When a surge of electricity, such as from a lightning strike, travels along a power line, the arrester quickly detects the abnormal voltage. It then provides a path of least resistance for the surge to travel to the ground, thus protecting the rest of the system from the surge.

Lightning arresters come in various types, each suited to different levels of protection and applications:

Distribution Class Arresters: These are used for protection in distribution networks and are common in 11,22 & 33kV systems.

Intermediate Class Arresters: They offer higher levels of protection, often used in substations.

Station Class Arresters: These provide the highest level of protection and are typically used in large power stations.

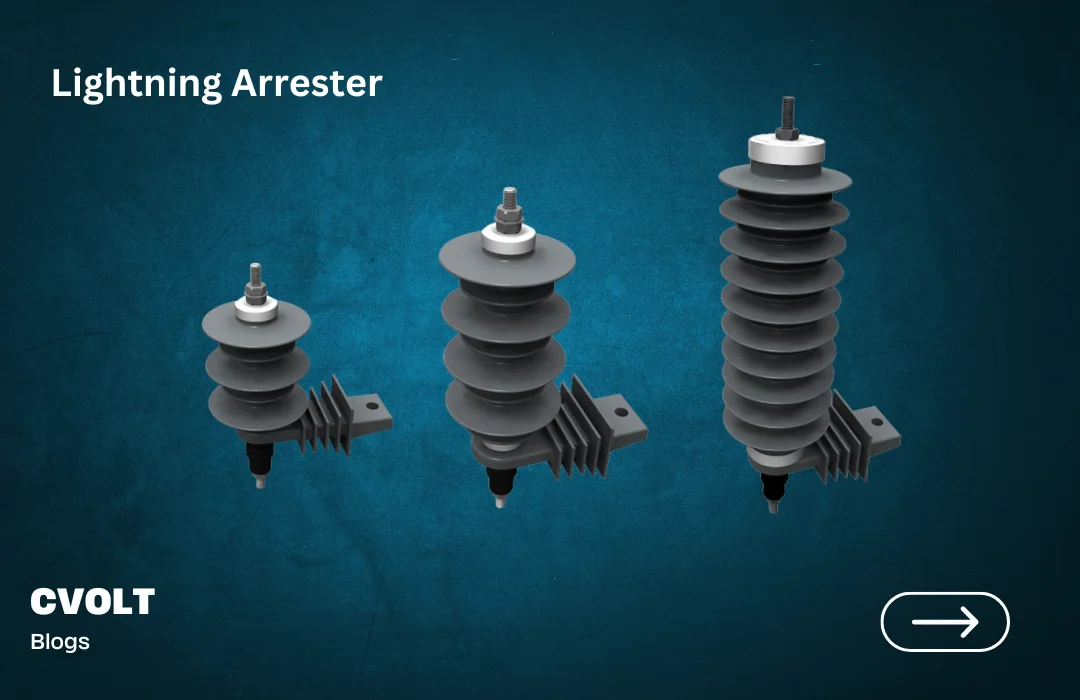

Understanding the key components of an 11kV lightning arrester can help in appreciating its functionality:

Housing (Polymeric): The outer shell of the arrester, which can be made from polymeric materials, is designed to withstand environmental conditions while protecting the internal elements.

Internal Elements (Zinc Oxide Blocks): Inside the arrester, zinc oxide blocks are the primary components responsible for clamping voltage surges and dissipating energy.

Grounding Mechanism: This component safely directs the surge energy to the ground, preventing it from affecting other parts of the electrical system.

The primary function of an 11kV lightning arrester is to prevent voltage spikes from reaching sensitive electrical components. It does this by:

Surge Protection Mechanism: The arrester acts as a barrier that prevents high-voltage surges from passing through to the rest of the system.

Voltage Limiting Capabilities: It clamps the voltage to a safe level, ensuring that even if a surge occurs, it won’t exceed the system’s tolerance.

Energy Absorption and Dissipation: The arrester absorbs the energy from the surge and safely dissipates it into the ground.

11kV lightning arresters are versatile and can be used in a variety of settings:

Utility Poles: They protect distribution lines from lightning strikes, ensuring continuous power delivery.

Power Substations: Arresters prevent damage to critical substation equipment, maintaining system reliability.

Industrial Plants: In industrial environments, arresters safeguard machinery and minimize downtime.

Renewable Energy Systems: They are increasingly used in solar and wind power installations to protect against lightning-induced surges.

Proper installation is crucial for the effectiveness of a lightning arrester. Here’s a brief guide:

Pre-Installation Considerations

Before installing, it’s important to assess the site and ensure that the arrester’s specifications match the system requirements. This includes verifying voltage levels, grounding conditions, and environmental factors.

Step-by-Step Installation Guide

Position the Arrester: Place it as close as possible to the equipment it is protecting.

Connect to the Line: Attach the arrester to the power line using appropriate connectors.

Grounding: Ensure that the grounding connection is secure and has low resistance.

Test the Installation: Perform tests to ensure that the arrester is functioning correctly.

Always follow safety protocols, such as wearing appropriate PPE and ensuring the power is off before beginning the installation. Regular training for personnel on the latest safety practices is also essential.

Maintenance of 11kV Lightning Arresters

Routine maintenance is key to ensuring the longevity and effectiveness of a lightning arrester.

Regular Inspection Procedures

Inspect the arrester periodically for signs of wear, such as cracks in the housing or loose connections. Pay special attention to the grounding system.

Common Maintenance Practices

Replace any damaged components promptly, clean the arrester regularly to prevent dirt buildup, and ensure that the grounding resistance remains low.

Troubleshooting and Repair

If the arrester fails to perform as expected, troubleshoot by checking connections, testing the zinc oxide blocks, and verifying the grounding system.

Selecting the appropriate lightning arrester for your needs involves several considerations:

Key Factors: Voltage rating, energy absorption capacity, and environmental resilience are crucial.

Comparing Brands and Models: Research different products and opt for those with proven reliability.

Case Studies and Real-World Examples: Look into how similar systems have performed in real-world scenarios to guide your choice.

11kV lightning arresters are a vital component in protecting electrical systems from the unpredictable power of lightning. By understanding their function, installation, and maintenance, you can ensure that your electrical infrastructure remains safe and reliable. Investing in the right lightning arrester not only safeguards your equipment but also provides peace of mind knowing that your system is protected against nature’s most powerful forces.

If you are looking for one of the most distinguished 11kV Lightning Arrester  manufacturers in India, CVOLT TRANSMISSION AND DISTRIBUTION SYSTEMS is the right place for you.
