Composite Polymer Insulator Manufacturer From India
CVOLT Transmission and Distribution Systems specializes in manufacturing and supplying electrical insulators for overhead power transmission and distribution systems. These insulators prevent unwanted electrical currents from passing through transmission & Distrubutions lines, ensuring safety and efficiency. Made from composite materials resistant to electrical currents and harsh weather conditions, these insulators protect conductors from excess voltages. Common types include pin, post , strain/Disc, Line Post, suspension, and tension insulators, each designed for specific applications and environmental conditions, helping to safeguard overhead systems from lightning and surges.
How to select Composite Polymer Insulator?
When replacing porcelain insulators with polymer ones, there are several advantages to consider. Key factors include material properties and product performance. The main question is: how do you start transitioning from porcelain to polymer insulators?

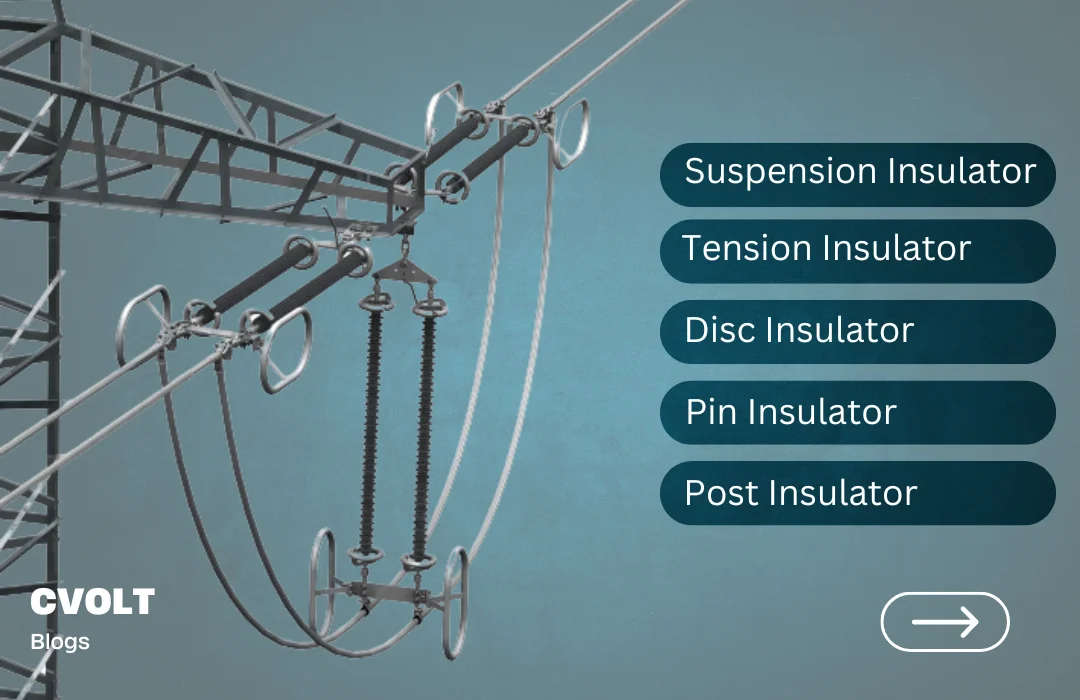

Lets Start the understanding the Types of Insulator.
Pin insulators are essential for supporting low voltage power lines, ideal for use on both conductors and cables. The conductor is mounted on top, supported by a galvanized pin, with a thimble to prevent direct contact between pin insulator and the metal channel pole.
Disc Insulator (Dead End / Strain Insulator) are essential for supporting low voltage power lines, ideal for use on both conductors and cables. these are also known as tension insulators and dead end insulators. They are used when the conductor is subjected to high tension over particular sections.
Post Type Insulator are essential for supporting Low & Medium voltage power lines, ideal for use on both conductors and Switchgears. They are mostly used Switchgear industry. its provide the good mechincal bending and compression strength to the High Voltage switchgears.
Polymer Long Rod Insulator (Suspension & Tension) are essential for supporting High voltage power lines, ideal for use on both conductors at high mechnical load. these insulator is the back bone of the high voltage transmission lines.it can be used with Corona for Corona Discharge Control.
Key Considerations When Choosing Electrical Insulators
When selecting insulators for transmission lines, it’s crucial to consider several factors to ensure reliability and durability:
- Specified mechanical load (SML): The insulator must withstand mechanical loads without failure.
- Sectional Length: It should be in Required/Desired Length as per the Power Transmission Lines.
- Electrical Performance: The insulator’s ability to resist electrical breakdown is crucial. This includes factors like dielectric strength, leakage distance, and creepage distance, which influence the insulator’s performance under high voltage.
- Creep Distance: The creepage distance (the shortest path between two conductive parts along the surface of the insulator) must be sufficient to prevent flashovers, especially in polluted environments.
- Thermal Properties: The insulator should have a high thermal endurance to withstand temperature changes without degrading. This is particularly important in areas with extreme temperature fluctuations.
- Aging and Durability: Insulators should be resistant to aging and environmental degradation over time. The lifespan of the insulator under the specific operating conditions should be considered to minimize maintenance and replacement costs.
- Compliance with Standards: Ensure the insulator complies with relevant industry standards and certifications, such as those from IEC, ANSI, or IEEE, to guarantee safety and performance.
- Application Specific Requirements: Depending on the specific application, such as transmission lines, substations, or distribution systems, the insulator may have unique requirements, like specific shapes, sizes, or mounting configurations
Additionally, the reputation and quality standards of the manufacturer are important, as different manufacturers may offer insulators with varying features and reliability. Ensuring these factors will contribute to the longevity and effectiveness of the insulator in the electrical system.
If you are looking for one of the most distinguished Electrical insulator manufacturers in India, CVOLT TRANSMISSION AND DISTRIBUTION SYSTEMS is the right place for you.
FAQ
What are the materials used to make electrical insulators?
Electrical insulators are mainly made from porcelain, glass or polymers.
What are the strongest types of insulators?
the strongest types of insulators:
Composite (Polymer) Insulators: Lightweight, resistant to pollution, and strong in extreme weather, suitable for modern high-voltage lines.
Porcelain Insulators: High mechanical and electrical strength, excellent for high-voltage applications.
Glass Insulators: Strong and durable with self-cleaning properties, ideal for high-voltage transmission lines.
Epoxy Resin Insulators: High resistance to mechanical and electrical stress, used in medium-voltage switchgear and transformers.
