In the industrial world, insulators play a critical role in ensuring safety, efficiency, and longevity of equipment. Whether you’re dealing with high-voltage electrical systems or managing extreme temperatures, understanding how insulators work can make or break your operations. Let’s take a closer look at the science and application of insulators in industrial settings and why they’re so essential.

At the most basic level, insulators are materials that prevent the flow of energy-whether that’s electricity, heat, or sound. They form a barrier that stops or significantly reduces the transfer of this energy between two objects or environments.

Thermal insulators are used to prevent the flow of heat.

Electrical insulators are used to stop the flow of electric current.

By controlling the transfer of energy, insulators protect equipment, conserve energy, and ensure operational efficiency.

Electrical Insulators:  Electrical insulators in industrial systems prevent the uncontrolled flow of electricity, which can damage equipment and pose severe safety hazards.

• Ceramic Insulators: These are commonly used in high-voltage systems because of their excellent heat resistance and dielectric strength.
• Glass Insulators: Often found in transmission lines, glass insulators are durable and non-conductive.
• Composite/Polymer Insulator: are used increasingly in place of ceramic insulators. Indeed, composite insulators are light, resilient, do not explode under impact, have good seismic behaviour, and withstand pollution well.
• Plastic Insulators: Lightweight and versatile, plastics like PVC are used for electrical wiring and low-voltage applications.

Thermal Insulators: Thermal insulators, on the other hand, are designed to reduce heat transfer. They help maintain temperature stability in industrial systems.

Fiberglass: One of the most commonly used materials, fiberglass insulates everything from industrial ovens to HVAC systems.

Mineral Wool: Known for its excellent thermal performance and fire resistance, mineral wool is ideal for high-temperature applications.

Polystyrene: This lightweight, cost-effective insulator is often used in cold storage facilities.

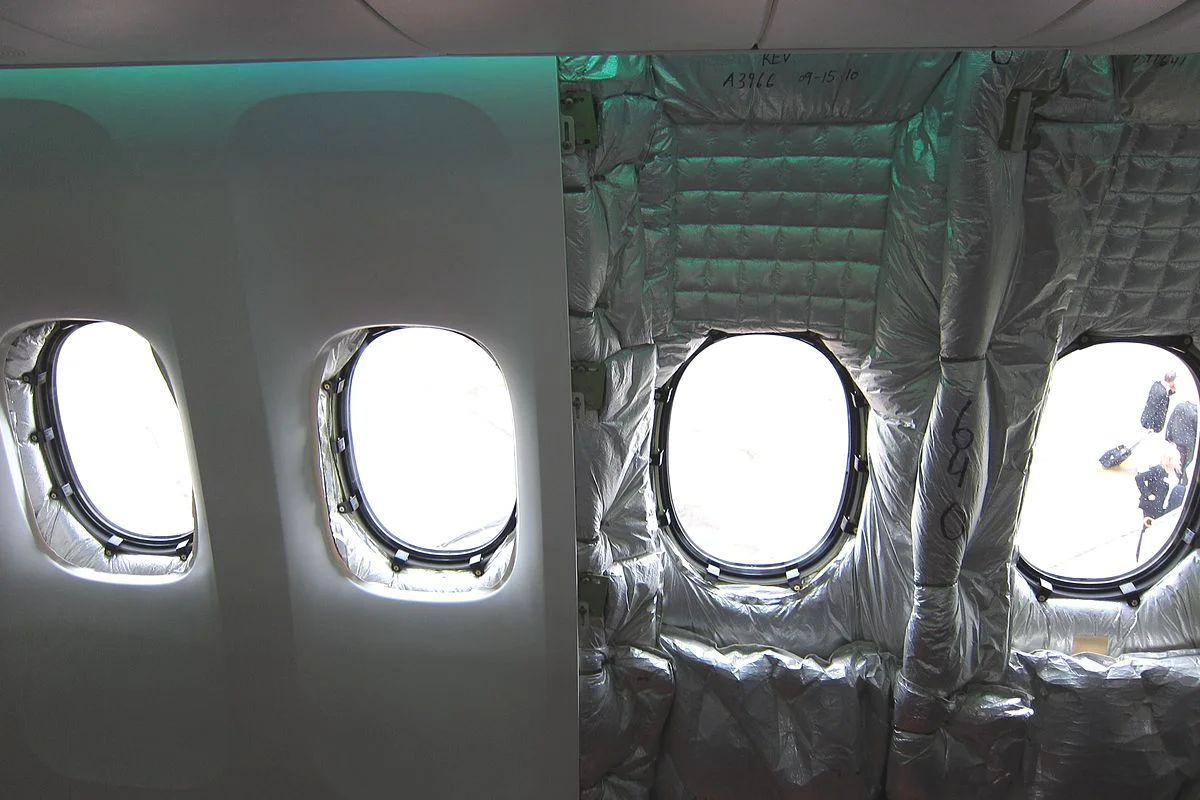

Cabin insulation of a Boeing 747-8 airliner

An electrical insulator works by preventing the flow of electrical current between conductive materials. Here’s a breakdown of how it functions:

Nature of Insulating Materials: Insulators are made of materials with high electrical resistance, meaning they do not allow free movement of electrons. Common insulators include rubber, glass, plastic, ceramics, and air.

Electron Structure: In an insulator, the electrons are tightly bound to their atoms, making it difficult for them to move. Unlike conductors, where electrons are loosely bound and free to move, insulators restrict the flow of electrical charge.

Separation of Conductors: In electrical systems, insulators are used to keep conductors (wires, cables, or components) separated from each other and from their surroundings. This prevents unintended current flow or short circuits.

Energy Barrier: When a voltage is applied across an insulator, the energy of the electric field is not enough to free the tightly bound electrons. As a result, current does not flow through the insulator, and the material remains electrically inactive.

Thermal and Mechanical Properties: Insulators also provide thermal protection by preventing heat transfer in electrical systems, and they offer mechanical support to components, like in power lines or transformers.

Breakdown Point: If an insulator is subjected to too high a voltage (its breakdown voltage), the insulating properties may fail, allowing current to pass through, which can result in arcing or system failure. Regular maintenance helps to avoid insulation breakdown.

A thermal insulator works by reducing or preventing the transfer of heat between objects or environments. Here’s a breakdown of how it functions:

Principle of Heat Transfer: Heat can be transferred in three ways: conduction (direct contact), convection (fluid movement), and radiation (electromagnetic waves). A thermal insulator works by minimizing these heat transfer methods.

Low Thermal Conductivity: Thermal insulators are made of materials with low thermal conductivity, meaning they do not easily allow heat to pass through. Common materials include foam, fiberglass, wool, and air.

Effectiveness: The effectiveness of a thermal insulator depends on its R-value (resistance to heat flow). A higher R-value means better insulation performance.

The key to a good thermal insulator is its structure:

Porous Structure: Many insulators have air pockets or porous structures that trap air. Air is a poor conductor of heat, so trapping it helps reduce heat transfer.

Fibrous Materials: Insulators like wool or fiberglass work by creating many small air pockets between fibres, which slow down heat conduction.

Reflective Surfaces: Some insulators have reflective surfaces (like aluminium foil) that reduce heat transfer by radiation, reflecting the heat back to its source.

How It Works:

Conduction: Insulators slow down the transfer of heat through direct contact by using materials that don’t conduct heat well. For example, in a house, insulation in the walls or roof helps keep warm air inside during winter and outside during summer.

Convection: In some cases, thermal insulators prevent heat transfer by limiting air movement. For instance, double-glazed windows trap air between the panes, reducing heat loss by convection.

Radiation: Materials with reflective properties, like aluminium, are often used to block or reflect radiant heat. This is common in spaces like attics to reduce heat from the sun.

Conclusion:

In summary, an electrical insulator works by blocking the movement of electric charge, ensuring that current only flows where intended, thus protecting the system from faults and enhancing safety.

a thermal insulator works by using materials that resist the transfer of heat, either by trapping air, using reflective surfaces, or minimizing the movement of heat through conduction, convection, and radiation.
