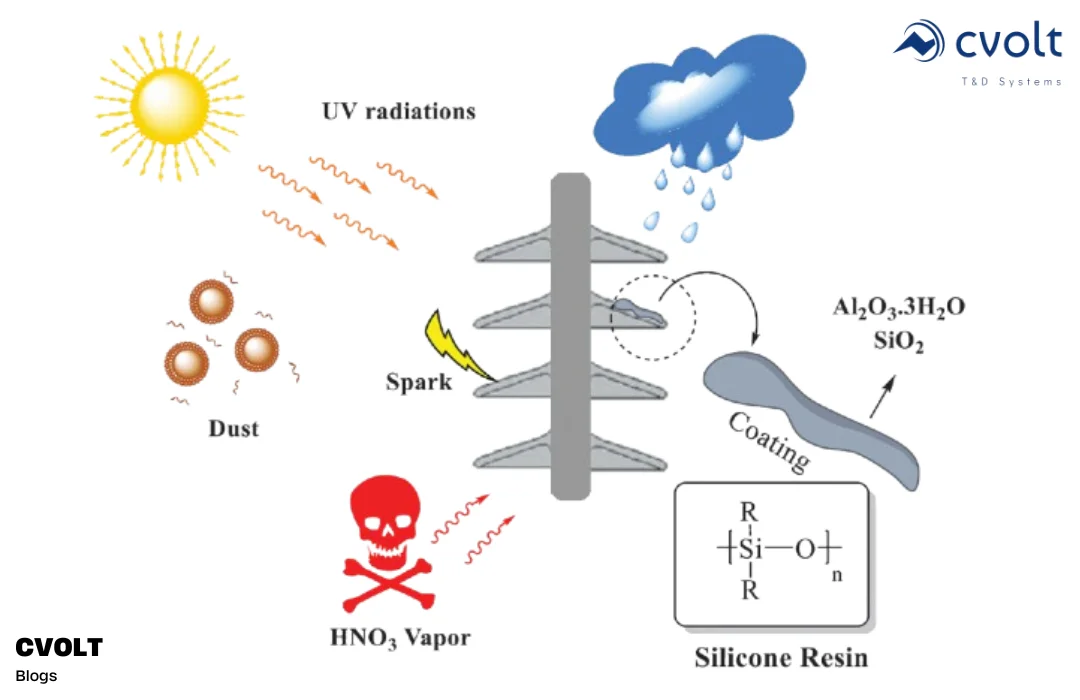

Polymer insulators, particularly those made of silicone rubber or other composite materials, are designed to handle extreme weather conditions better than traditional porcelain or glass insulators. Their inherent properties make them suitable for a wide range of harsh environmental challenges, including high humidity, pollution, temperature extremes, ice, and UV radiation. Below is an explanation of how polymer insulators perform in various extreme weather conditions:

• Material Composition: Polymer insulators, especially those made from silicone rubber, have excellent thermal stability. Silicone rubber can withstand high temperatures, typically ranging from 100°C to 250°C, without significant degradation. High-performance polymers are less prone to expansion and cracking under thermal stress compared to porcelain.
• Thermal Aging Resistance: Composite insulators are designed to resist thermal aging. High temperatures cause less mechanical wear, oxidation, or material degradation, allowing polymer insulators to remain functional even in desert or tropical climates.
• Advantage: The flexibility and resilience of silicone rubber mean polymer insulators can endure prolonged exposure to extreme heat without losing their insulating or mechanical properties.

• Flexibility at Low Temperatures: One of the standout features of polymer insulators is their ability to maintain flexibility at low temperatures. Unlike porcelain insulators, which can become brittle in sub-zero conditions, silicone rubber retains its mechanical integrity and flexibility, making it highly resistant to cracking or damage in cold climates.
• Ice Loading: In cold and freezing environments, ice accretion on transmission lines and insulators can be a major issue. Polymer insulators, particularly those with hydrophobic (water-repellent) properties, resist the build-up of ice. When ice does form, it is more likely to shed from the insulator due to its flexible material, reducing mechanical stresses caused by ice loading.
• Testing: Polymer insulators are tested to withstand temperatures as low as -50°C. Their superior performance in extreme cold makes them ideal for use in high-altitude or polar regions where porcelain insulators would be prone to fracture.

• UV Resistance: Prolonged exposure to ultraviolet (UV) radiation can degrade many materials over time. However, silicone rubber used in polymer insulators has excellent UV resistance. The silicone material contains additives that prevent UV rays from breaking down the polymer structure, ensuring the insulator maintains its electrical and mechanical properties over time.
• Aging and Weathering: The ability to resist UV-induced aging is one of the key reasons polymer insulators outperform porcelain in harsh environments, particularly in regions with strong sunlight. Studies show that silicone rubber retains its properties for many years, even under continuous UV exposure.
• Advantage: This durability makes polymer insulators an excellent choice for power lines in tropical, desert, and high-altitude regions where UV exposure is intense.

• Hydrophobic Properties: A major advantage of silicone rubber insulators is their natural hydrophobicity. The water-repellent surface of polymer insulators prevents water droplets from forming continuous conductive paths, reducing the risk of flashovers in wet conditions.
• Self-Cleaning Ability: Even in polluted environments—such as industrial areas or coastal regions—polymer insulators retain their hydrophobic properties. The silicone material can transfer its hydrophobic characteristics to pollutants deposited on the surface, preventing moisture from creating conductive layers. This self-cleaning feature ensures that insulators perform reliably even in environments with high levels of dust, soot, or salt contamination.
• High Pollution Resistance: Silicone insulators are particularly effective in highly polluted regions, where traditional porcelain insulators require regular cleaning to prevent flashovers. Polymer insulators can withstand pollution levels without significant performance loss, reducing maintenance needs and extending service life.

• Lightweight Design: Polymer insulators are much lighter than porcelain or glass insulators, which makes them less susceptible to mechanical stress in high-wind conditions or seismic activity. Their lightweight design reduces the mechanical loading on support structures and conductors.
• Vibration and Mechanical Flexibility: In regions prone to high winds or earthquakes, the flexibility of polymer insulators allows them to absorb and withstand mechanical vibrations and stress better than their rigid porcelain counterparts. This flexibility reduces the risk of mechanical failure, cracking, or breakage.
• Wind-Driven Pollution: Polymer insulators are also less affected by wind-driven pollution, such as sandstorms, as their hydrophobic surfaces prevent accumulation of dust and debris that could lead to tracking or flashover.

• Excellent Performance in Humidity: Polymer insulators are designed to perform well in high-humidity environments. In contrast to porcelain insulators, which can become conductive when wet, the hydrophobic surface of polymer insulators prevents the formation of conductive water films.
• Rain Sheds: Many polymer insulators are designed with rain sheds or skirts that enhance their ability to shed water. These features improve the creepage distance, allowing the insulator to maintain its electrical performance in heavy rain or fog conditions.
• Flashover Resistance: Polymer insulators, due to their hydrophobicity and design, provide superior resistance to flashover during rainstorms. This is especially important in areas prone to monsoon conditions or frequent thunderstorms.

• Corrosion-Free Core: Polymer insulators, unlike porcelain or glass insulators, do not have metal cores that can corrode. Their fiber-reinforced polymer (FRP) rods are corrosion-resistant, which makes them ideal for use in coastal regions where salt corrosion is a significant problem.
• Corrosion-Resistant Fittings: Many modern polymer insulators also come with corrosion-resistant metal fittings. These fittings are often made of stainless steel, aluminum, or special coated alloys that withstand harsh environmental conditions without corroding.
• Long-Term Durability: The corrosion-resistant nature of polymer insulators makes them particularly suited for use in chemical plants, industrial areas, and coastal transmission lines, where exposure to corrosive substances is common.

• Tracking and Erosion Resistance: Electrical tracking is a common issue in high-voltage insulators exposed to pollutants and moisture. Silicone rubber used in polymer insulators offers excellent resistance to tracking and erosion, even in extreme electrical and weather conditions.
• Enhanced Dielectric Properties: The dielectric strength of polymer insulators remains stable over a wide range of temperatures and humidity levels. This makes them ideal for use in areas prone to sudden changes in temperature, heavy rain, or high electrical stress.
• Advantage in Substation and Transmission Lines: Polymer insulators are widely used in substations and overhead transmission lines, where they must maintain electrical integrity even under lightning strikes, overvoltage conditions, or high electrical stress.

In summary, polymer insulators outperform traditional alternatives in environments with:

• High temperatures (thermal stability and resistance to UV).
• Cold climates (resistance to brittleness and cracking).
• High humidity and rain (hydrophobic and self-cleaning properties).
• Coastal and industrial areas (corrosion resistance).
• High wind and seismic zones (mechanical flexibility and lightweight).
